Pose Estimation on the Edge: Real-time Workout Feedback

Machine Learning Lead @ cult.fit — Jul 2020 to Dec 2021

Overview
Built an on-device pose-estimation pipeline using TensorFlow Lite to power interactive workouts with real-time rep-counting, energy scoring, and form feedback without any server round-trips.

Model & Deployment

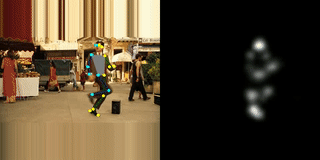

• Architecture: CenterNet-inspired U-Net with MobileNet backbone, predicting 30 keypoint heatmaps (256×256 → 64×64).
• Variants:
  • SMALL: 1.27 M params, 58.6 FPS on laptop CPU
  • MEDIUM: 2.45 M params, 29.8 FPS
  • LARGE: 3.79 M params, 5.8 FPS
  • Edge Optimizations: Mixed-precision training, data caching, and TFLite integration for sub-20 ms/frame inference on mobile CPUs.

Robustness & Accuracy

• Augmentations: Random occlusion, brightness/contrast shifts, 90° rotations, horizontal flips.
• Inference Enhancements:
  • Dynamic Cropping: Uses last-frame keypoints to crop noisy inputs.
  • Low-Pass Filter: Smooths high-frequency jitter for stable joint tracking.

Applications

• Rep Counting: Rule-based state machine on keypoints, deployed in the cult.fit app and gym-mirror prototype.
• Energy Meter: Velocity-based scoring displayed live in UI to gamify workouts.

Links & Resources

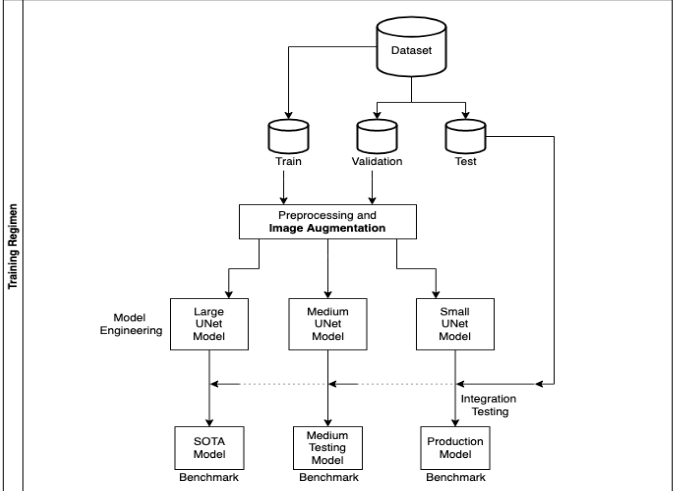

• Training regimen :
