Do visual cues help vlms ?

Problem

VLMs are very good at identifying events in videos. But it is hard to focus their attention on a specific action or object, specially if the object or action is a small part of the video. Humans use visual cues to attract attention towards a region or action, e.g. a stop sign on the road or a wiggly line drawn under wrongly spelled text. Once focused we can observe finegrained details from that region. This experiment is to determine if using visual cues like bboxes/trajectories will help VLMs focus better.

TLDR : Not really. Adding cues confuses models.

Without cues

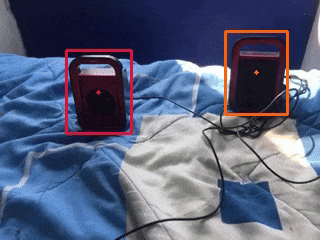

With cues [bounding boxes and trajectories of relevant objects]

Experiment

Training

A ~9.5k video subset of ssv2 dataset which has 50 verbs and ~4000 objects.

>> random.sample(verbs, 5)
>> ['picking', 'dropping', 'throwing', 'poking', 'twisting']

>> random.sample(objects, 5)
>> ['a teaspoon', 'amrutanjan balm', 'teapoy', 'a pamphlet', 'salt container']

Create multiple choice questions for every video, to predict the object or verb

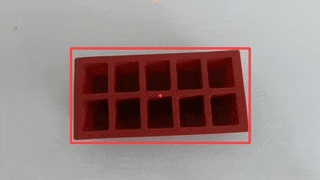

Videos

Questions

 Q1. dropping _____ into red rubber ice-tray.
 Options: crumpled paper, a gift bag, thermos bottle, a cheese cube
 Answer: a cheese cube

 Q2. dropping a cheese cube into _____.
 Options: dettol bottle, salt shaker, stack plastic cups, red rubber ice-tray
 Answer: red rubber ice-tray

 Q3. _____ a cheese cube into red rubber ice-tray.
 Options: hitting, pulling, falling, dropping
 Answer: dropping

Setup

• We split the dataset into test:train::1:8.5
• Each video has average of 2.5 questions
• ~42k training samples, 2.5k test samples for cued and 2.5k for plain
• We train a single model with both plain and cued videos
  • base = qwenvl3 2b/4b instruct
  • bs = 8, grad acc = 4, 1 epoch = ~1.3k steps
  • lora (rank=64, alpha=64) over llm only
  • cosine lr with peak 1e-4, and warmup of 3%
• vllm for inference with guided response choices

Results

Before finetuning, object accuracy is lower for cued videos.

model	videos	object_acc	verb_acc	overall_acc
pretrained	plain	90.77%	63.90%	79.39%
pretrained	trajectory	85.74%	64.40%	76.29%

After finetuning, cued videos perform worse in both object and verb category.

model	videos	object_acc	verb_acc	overall_acc
finetuned	plain	96.40%	98.30%	97.29%
finetuned	trajectory	93.77%	98.00%	95.65%

Interpretation

Attention maps

What happens to attention when we add these boxes and trajectory lines ? Intuitively, results should be much better because there is a clear indicator of region which will fetch correct answer. But something else happens.

We debug this in multiple ways by checking attention of vit, llm and measuring perplexity of different types of images.

• Attention disrupted : visual cues attract attention away from natural visual features [attach map]

• VLMs have fragmented attention: VLMs are a combination of a clip based embedder and an llm. In this exercise we finetune only the language part. [show clip attention map, and compare with llm attentions]

• Model bias: pretrained models that have not see many trajectories or bounding boxes, dont interpret these as natural features and get confused. [high activations on bbox boundaries, not inside]

• Cues are a different language from natural visual features. They require understanding abstractions. e.g. a black triangle on road implies slope ahead. [add examples of perplexity of a visual cues being much higher than a normal image]

This indicates that

• instead of reinforcing relevant regions, trajectory overlays can diffuse or misplace the model’s focus.
• simply adding cues in few examples is not enough and more work is needed to make cues work for vlms.

Reproduce

Follow instructions at : github repo
